NL GHOST OV

HARDWARE+ SOFTWARE:

NL GHOST OV is an all-in-one camera, able to process vehicle applied video analytics and to detect traffic infractions.

The solution uses one camera for video analytics with a high-resolution ultrasensitive CMOS sensor, and one ONVIF camera to record evidence for the detected infractions. It also has an internal Quad-core processor, to provide a superior performance processing up to two lanes and 150 km/h.

VEHICLE VIDEO ANALYTICS

NL GHOST OV processes the following video analytics: license plate recognition, speed calculation, vehicle make and classification (car, motorcycle, bus, truck and van) and direction, lane, and country.

AID - AUTOMATIC INCIDENT DETECTION

This unit can automatically detect traffic incidents performing analytics such as:

• Average Speed ​​Calculation.
• Red Light Control.
• Photo Stop Control.
• Wrong turn control.
• Wrong way detection.
• Illegal stop (in a prohibited area).
• Access into a restricted area, such as pedestrian zones and historical centers.
• Low Emissions Zone (LEZ) restricted access.
• Management of taxis or buses lanes.

NL GHOST OV processes internally both the video analytics and traffic incidents, delivering only the results, which saves bandwidth considerably. It also has an internal storage, which makes the unit tolerant to network drops. Each unit is delivered calibrated and tested, for its easy lateral or overhead installation.

BACK OFFICE

NL GHOST OV can connect to NEURAL SERVER to:

• View all the recognitions.
• Perform historical searches.
• Receive alarms.
• Validate and export penalties for traffic incidents.
• List management.
• User management.
• Monitoring the status of each NL GHOST OV unit

MAIN CHARACTERISTICS

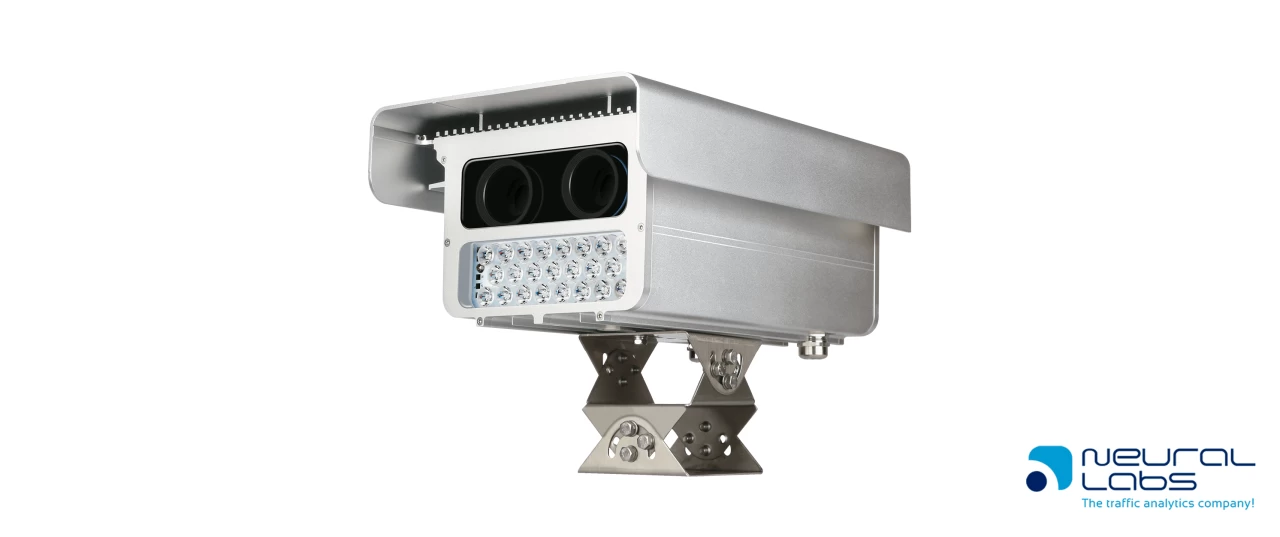

NL GHOST OV camera comes with a standard RJ45 socket port and 23 infra-red LED strobe lights to provide optimal illumination to the license plates at night. It has an extended temperature range from -40o C to +80o C.

The camera has an aluminum housing with a 4mm glass front. It also includes a sun visor to protect the unit from adverse weather. Its top opening allows easy access for quickly wiring and optimize conveniently the start-up of the unit.

• Frame rate (fps. max.): 55,6.
• Strobe lighting and electronic lighting control.
• Multiple recognition of license plates from a single perspective.
• 48Vdc power supply.
• Standard 60GB Slot SD storage, expandable up to 2 TB.
• 25 or 35 mm fixed lens for viewing at a distance from 20 to 30 meters, respectively.
• Option to capture the license plate image as well as the surrounding scene with the same unit.
• 23 LEDs to illuminate up to two lanes (30 meter) at 850 nm.
• Standard IP 66 assemble.
• Extended temperature range CPU.
• ONVIF color surroundings camera included.
• SDK for third party systems integration.
• Traffic incidents results sent via XML, JSON, SFTP.
• Time synchronism by NTP/SNTP or GPS.

ESPECIFICACIONES TÉCNICAS GENERALES
